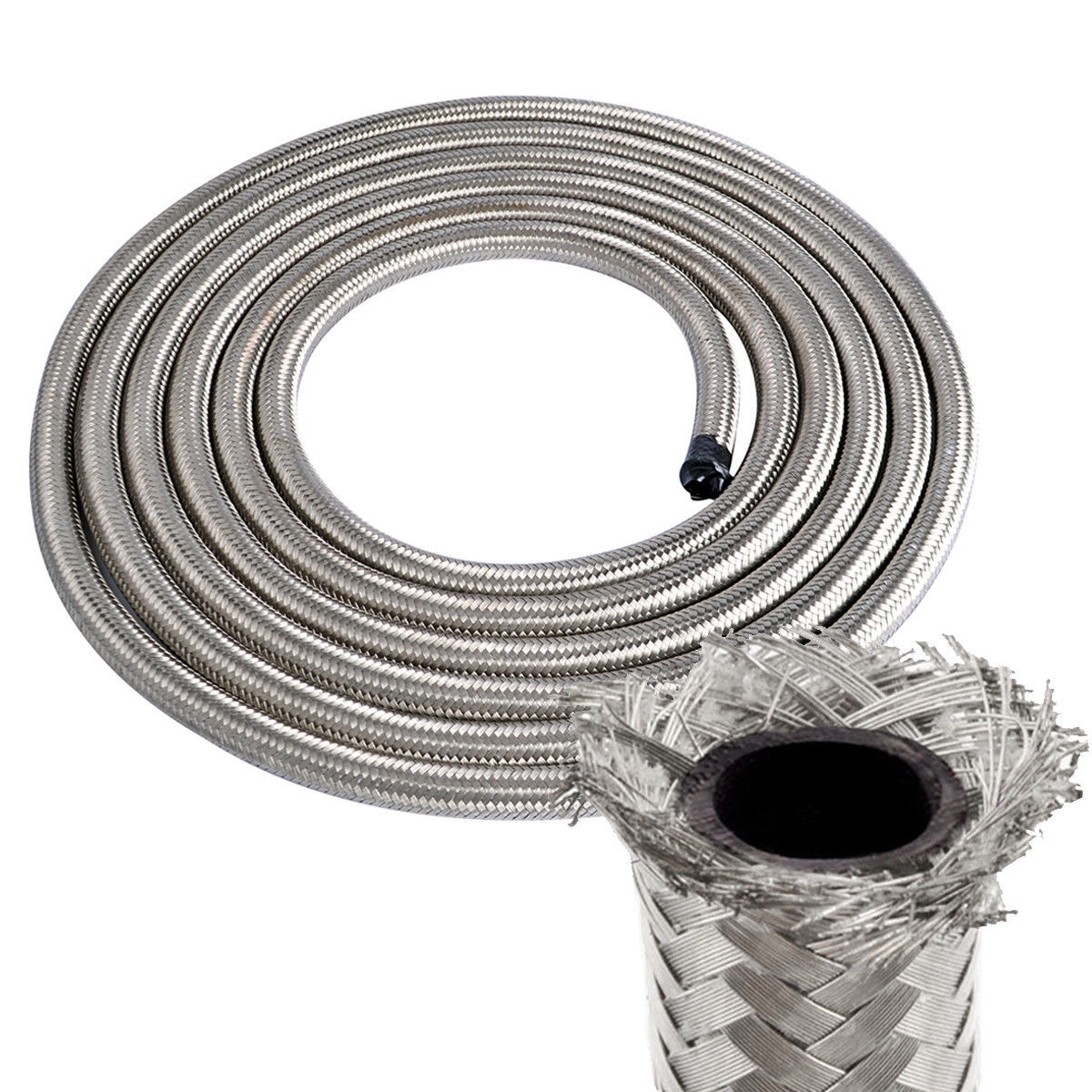

Stainless steel braided synthetic rubber hose. Perfect to build your custom hoses with our swivel hose ends.
The length is by the foot and is a continuous line unless asked by customer.
To buy 5 feet of hose select the size you want and put 5 in the quantity and click on Add to cart button.
| AN Size | Hose size I.D |
| -4 | 1/4" |
| -6 | 3/8" |
| -8 | 1/2" |
| -10 | 5/8" |
| -12 | 3/4" |
| -16 | 1" |
| -20 | 1 1/8" |
| Size | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Temperature Range | Minimum Bend Radius | |
| mm | mm | Mpa | Mpa | Min | Max | mm | |
| AN4 | 5.56 | 11.13 | 10.3 | 41 | -40 | 150 | 50.8 |
| AN6 | 8.73 | 13.89 | 10.3 | 41 | -40 | 150 | 63.5 |
| AN8 | 11.12 | 16.28 | 10.3 | 41 | -40 | 150 | 88.9 |
| AN10 | 14.27 | 20.24 | 8.6 | 35 | -40 | 150 | 101.6 |
| AN12 | 17.47 | 23.82 | 7 | 28 | -40 | 150 | 114.3 |
| AN16 | 22.22 | 29.36 | 5.2 | 21 | -40 | 150 | 139.7 |
